Name: Custom Carbide Torx Punch Pins for Industrial Stamping Molds
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Disesuaikan
Price: 1.80 USD
Availability: InStock

Beranda > Produk > Punches Karbida dan mati >

Custom Carbide Torx Punch Pins for Industrial Stamping Molds

custom carbide Torx punch pins

industrial stamping mold punches

carbide Torx pins with warranty

Tempat asal:

Chongqing, Cina

Nama merek:

Henghui

Nomor model:

Disesuaikan

Hubungi Kami

Minta Kutipan

Custom Carbide Torx Punch Pins for Industrial Stamping Molds

Detail Produk

Mode Pembentukan:

Meninju cetakan

Bahan produk:

Logam

Opsi material:

Carbide, SKD11, HSS, A2, M2, D2, ASP23, ASP60

Perawatan permukaan:

Ticn, timah, aitain, ticrn, nitrided

Toleransi:

0,003mm-0,01mm

Jenis mesin:

Mesin pemukul

Format gambar:

2D/(PDF/CAD) 3D (IGES/Step)

Moq:

10 PC

Toleransi profil:

+/- 0,006mm ~ +/- 0,008mm

Kekerasan:

HRA60-68

Penggunaan:

Untuk membuat baut atau mur

Mesin pemrosesan:

Kawat EDM, CNC Milling and Turning, Laser Cutting, Drilling, Grinding, Bending, Stamping, Welding

Perangkat Lunak Menggambar:

Autocad, Pro-Engineer, UG, Moldflow

Kontrol Kualitas:

Inspeksi 100% sebelum pengiriman

Konsentrisitet:

dalam 0,01mm

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

$1.80-2.15

Produk terkait

High Precision Carbide Die for Screw Extrusion Mould

Dapatkan Harga Terbaik

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

Dapatkan Harga Terbaik

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

Dapatkan Harga Terbaik

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Dapatkan Harga Terbaik

Hubungi Kami

+8613983025528

hou@citool.com

86-023-60338218-60338218

Hubungi Sekarang

Deskripsi produk

Customized ODM Precision Stamping Mold Parts Tungsten Carbide Torx Punch Pins

Product Specifications

Attribute	Value
Shaping Mode	Punching Mold
Product Material	Metal
Product	Mold
Product name	Punch Pin
Material	Carbide,SKD11,HSS,A2,M2,D2,ASP23,ASP60
Surface Treatment	TiCN,TiN, Aitain,Ticrn,Nitrided
Tolerance	0.003mm-0.01mm
Machine type	Punching machine
Sample	Available
Drawing Format	2D/(PDF/CAD)3D(IGES/STEP)
Usage	Industrial Field
MOQ	10 pcs
Delivery Time	3-15 working days

Product Description

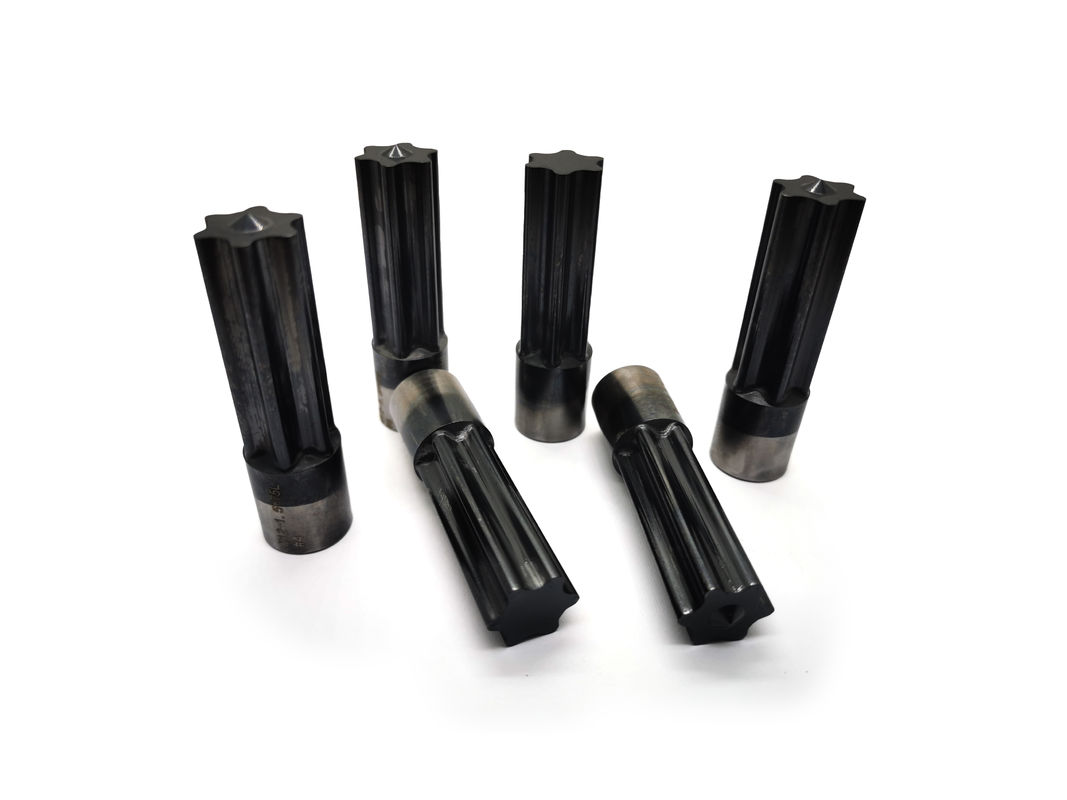

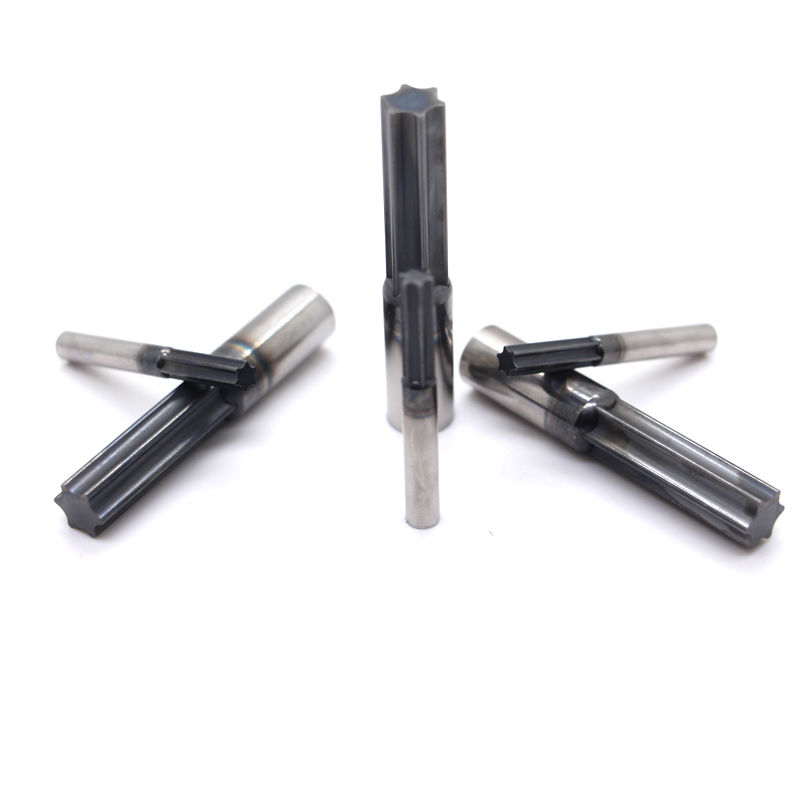

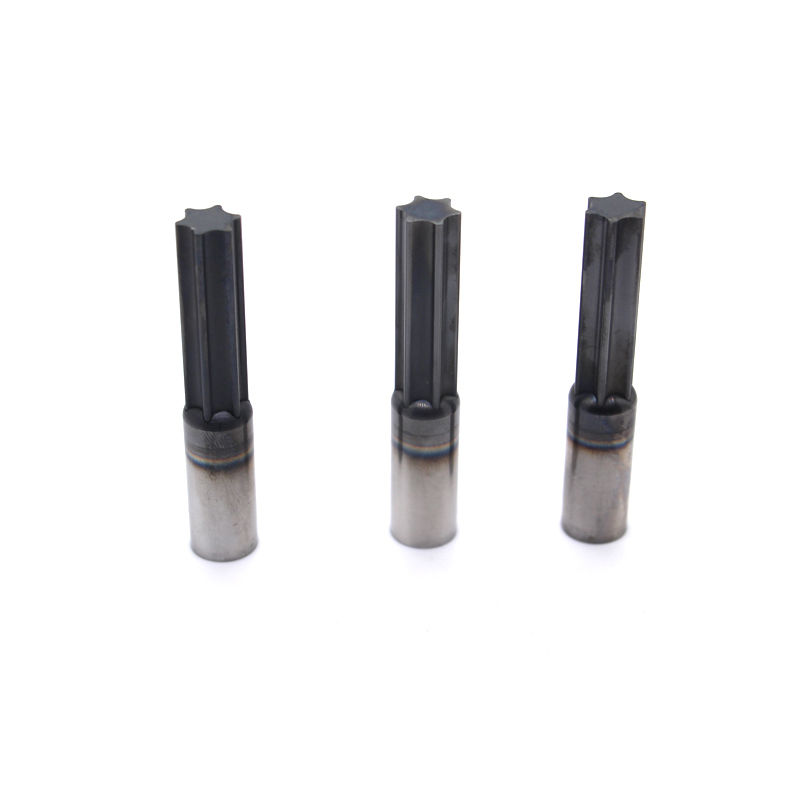

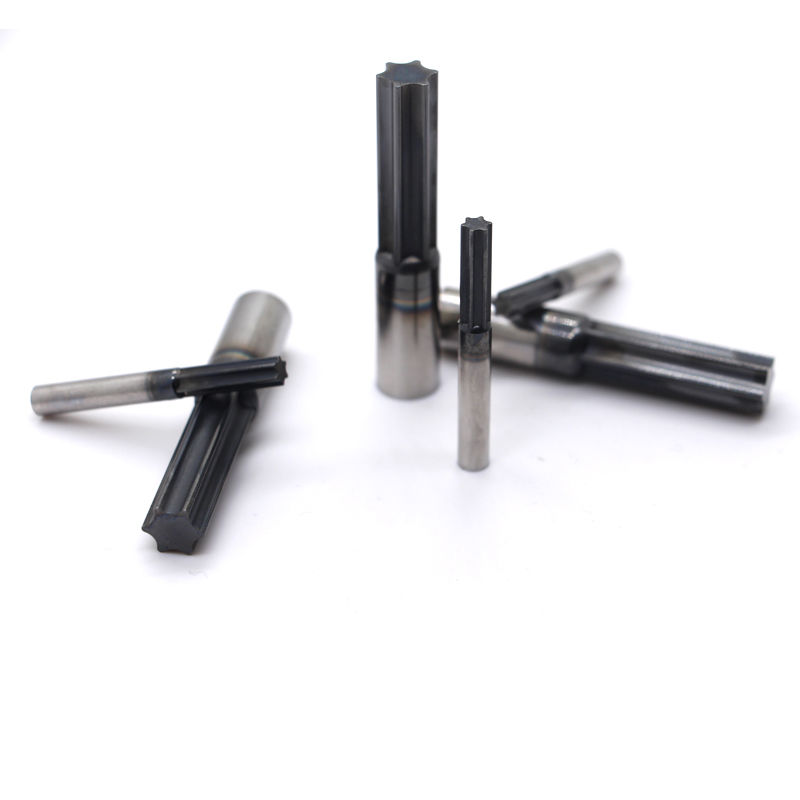

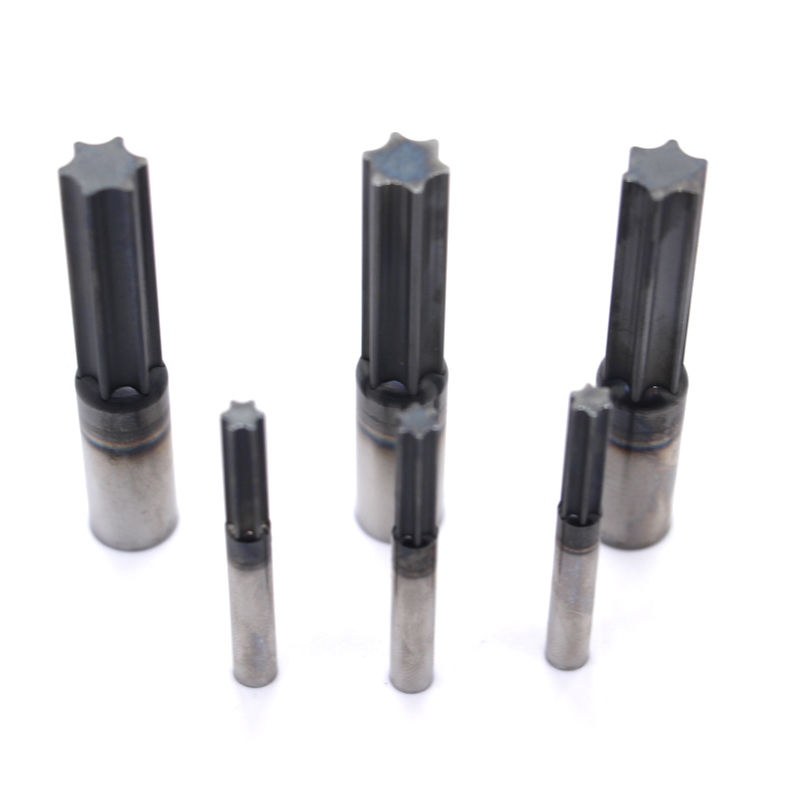

Torx Punch Pins

Material Specifications

H9(M2) Chemical Composition
C	Si	Mn	P	S	Cr	Mo	V	W
0.85%	0.33%	0.34%	0.027%	0.005%	4.12%	4.73%	1.78%	5.74%
Cu	Ni
0.12%	0.24%

M42(SKH59) Chemical Composition
C	Si	Mn	P	S	Cr	Mo	V	W
1.06%	0.3%	0.31%	0.018%	0.002%	3.74%	9.29%	1.1%	1.34%
Cu	Ni	Co
0.07%	0.29%	7.97%

Surface Treatment: TILAN

Feature	Specification
Product Name:	Pin Punch
Material:	M2/M42/M35/Carbide
Profile tolerance:	+/-0.006MM~ +/-0.008MM
Surface treatment:	Polishing, coating Treatment, Nitriding treatment, measuring, ETC
Hardness	HRA60-68
Measuring instruments:	VMS, profile projector, pressure gauge, hardness tester, magnifying glass, etc
Usage	For making bolts or nuts
Design:	Standard or un-standard parts, according to customer's requirement
Processing machinery:	Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc
Drawing software:	AUTOCAD, pro-engineer, UG, moldflow, etc
Application:	Machinery equipment, Heavy industries parts & tools, medicine, chemical, etc
Quality control:	100% inspection before shipping
Customization:	OEM ODM service

Factory & Production

About Chongqing Henghui Precision Mold Co., Ltd.

Our company is equipped with advanced CNC lathes, machining centers, grinding machines, EDM machines, and cutting machines. We maintain strict quality control with Rockwell Hardness Testers, Projectors, and 3D Image Measuring Instruments. Using premium tungsten carbide materials and professional vacuum heat treatment, we specialize in precision molds for cold heading and hot upsetting industries.

Our products maintain a relative standard deviation within 0.005mm and concentricity within 0.01mm. Operating under ISO9001:2015 quality management system, we serve global markets including Southeast Asia, Europe, and the United States with our commitment to "Customer first, quality first, technology first, dedicated service."

Exhibition Participation

We actively participate in international fastener exhibitions including German Fastener Exhibition and Indian Fastener exhibition, where we showcase our products and establish valuable business connections.

Packaging & Delivery

Packaging: Carton Box; Export Standard Package, Or As Client's Requirement.
Delivery: According To The Quantity Of The Order, About 12-45 Days.

Quality Inspection Equipment

Frequently Asked Questions

Q1: How can I get a quotation from your company?

A1: Contact us. For accurate quotation, please provide: drawings, Material, Quantity, Surface treatment requirements.

Q2: What is our lead time?

A2: Lead time depends on order quantity and destination country.
