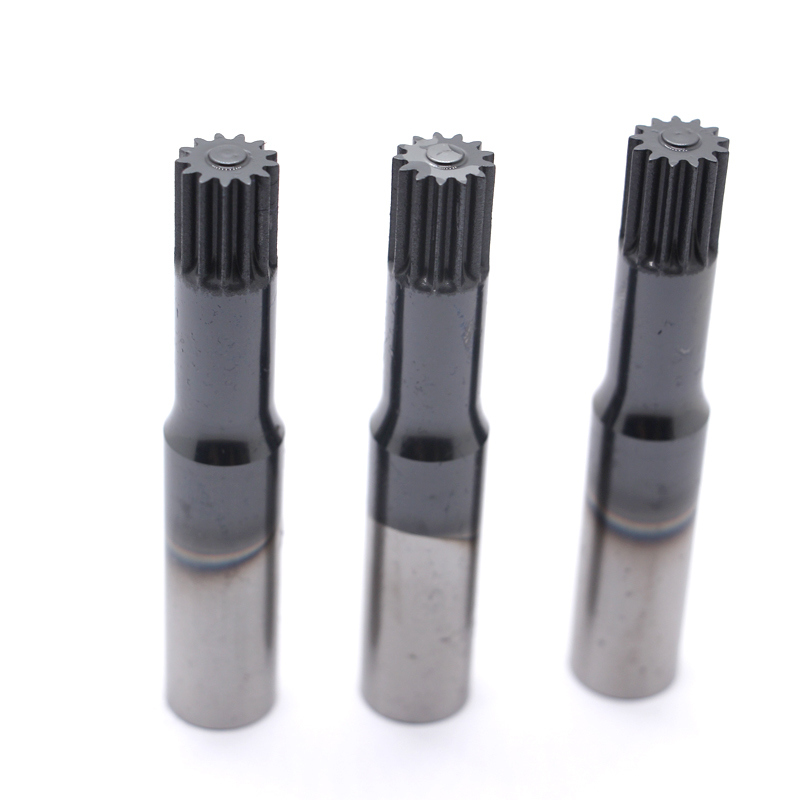

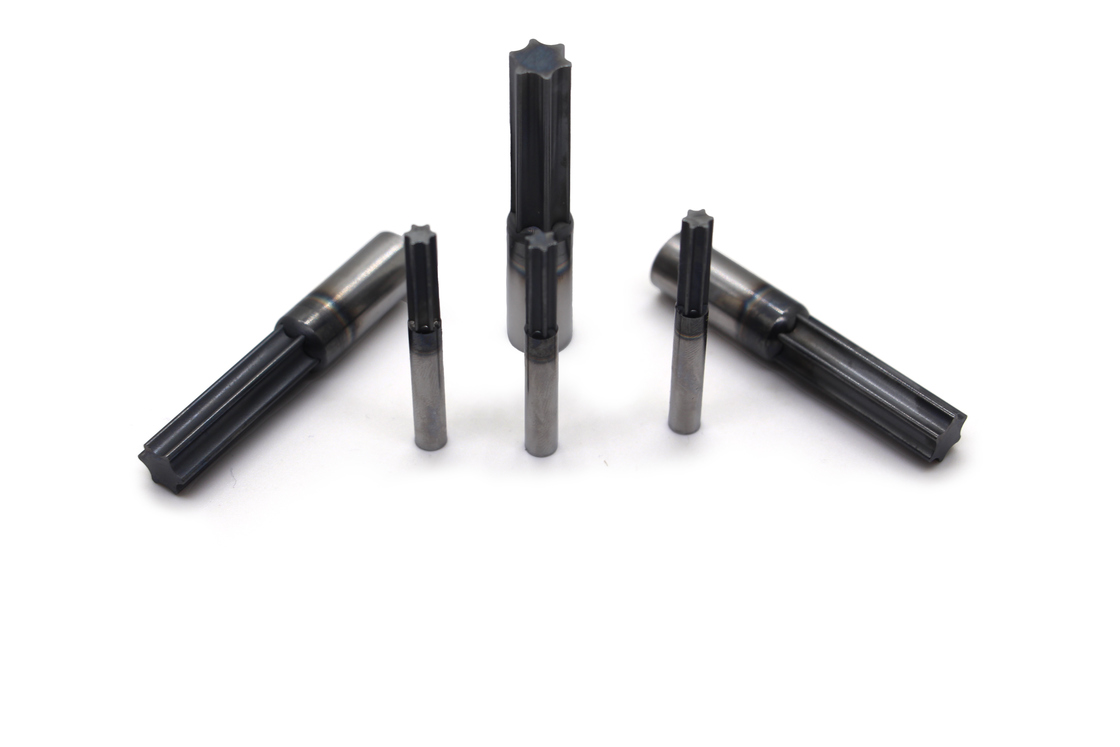

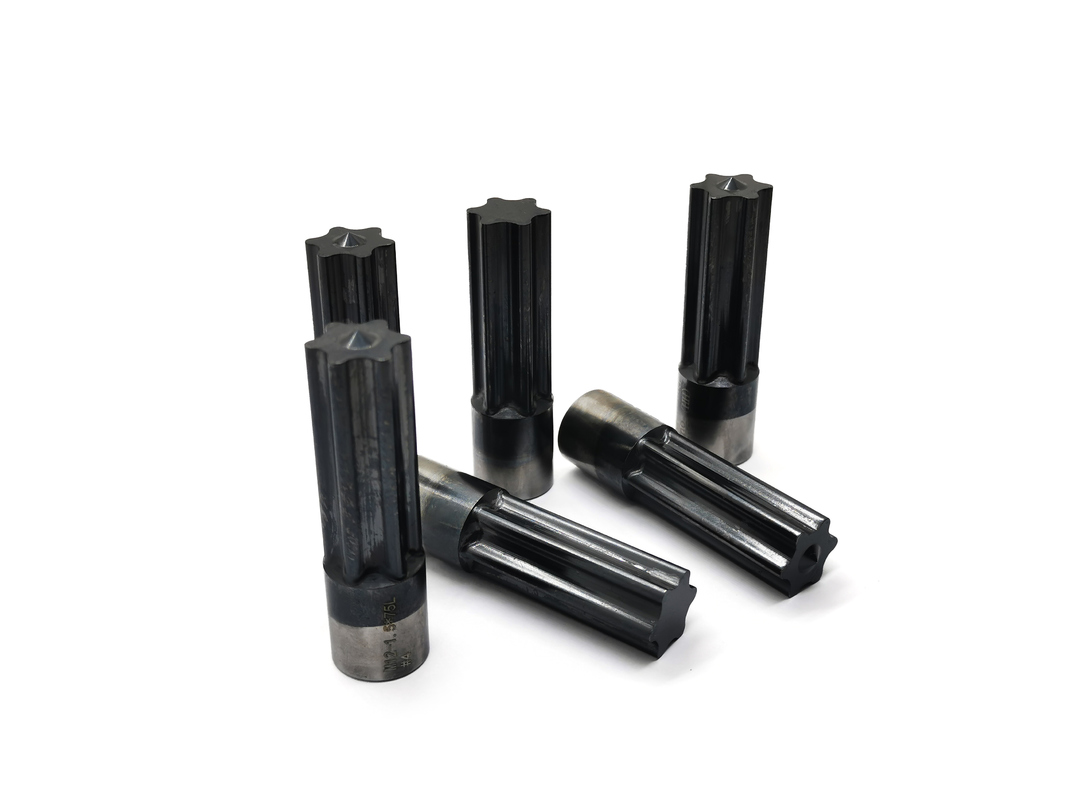

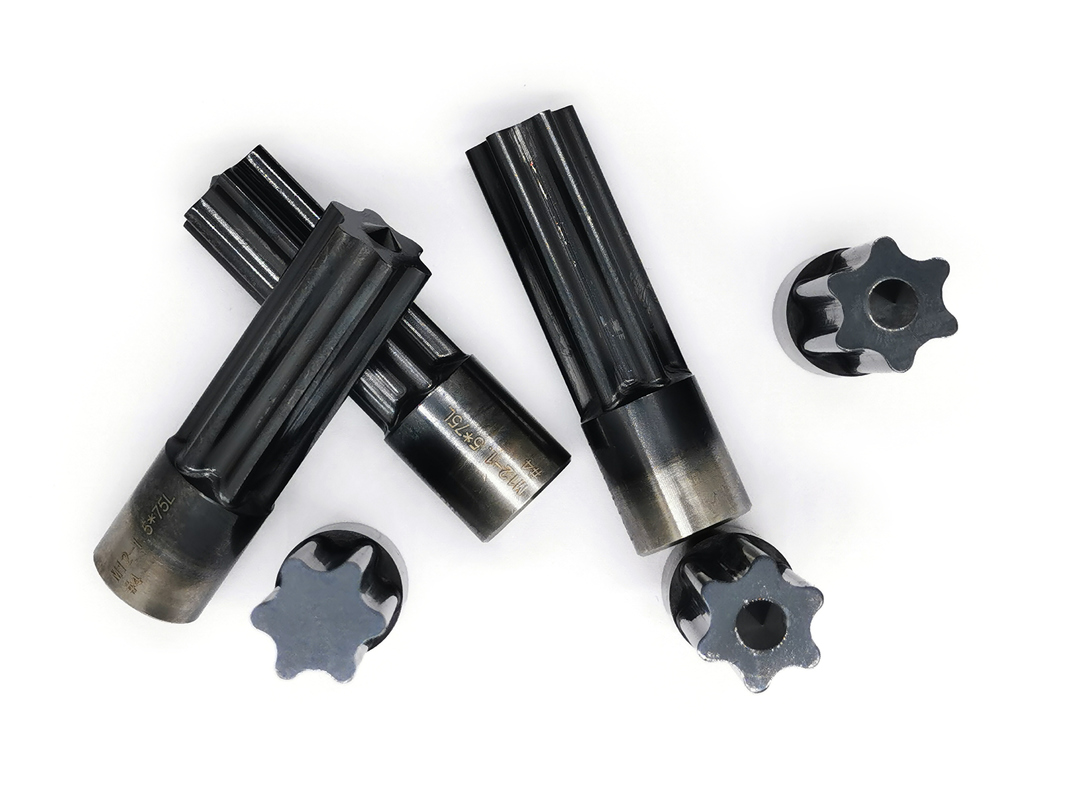

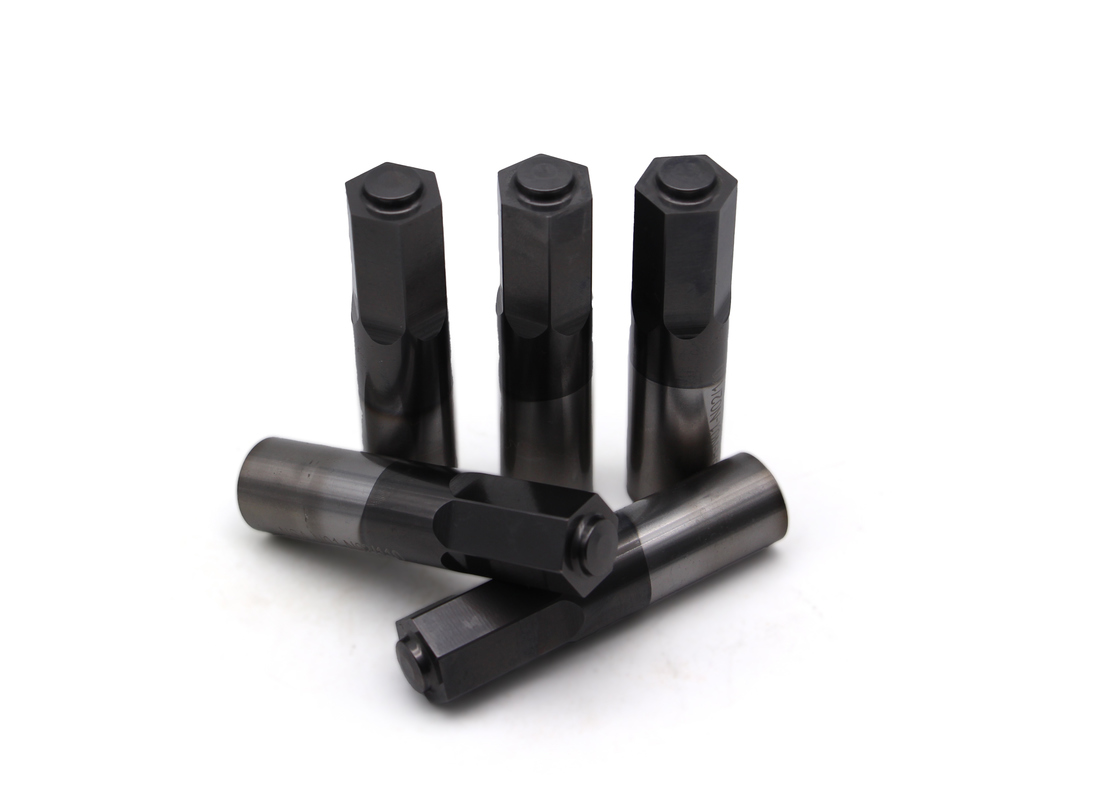

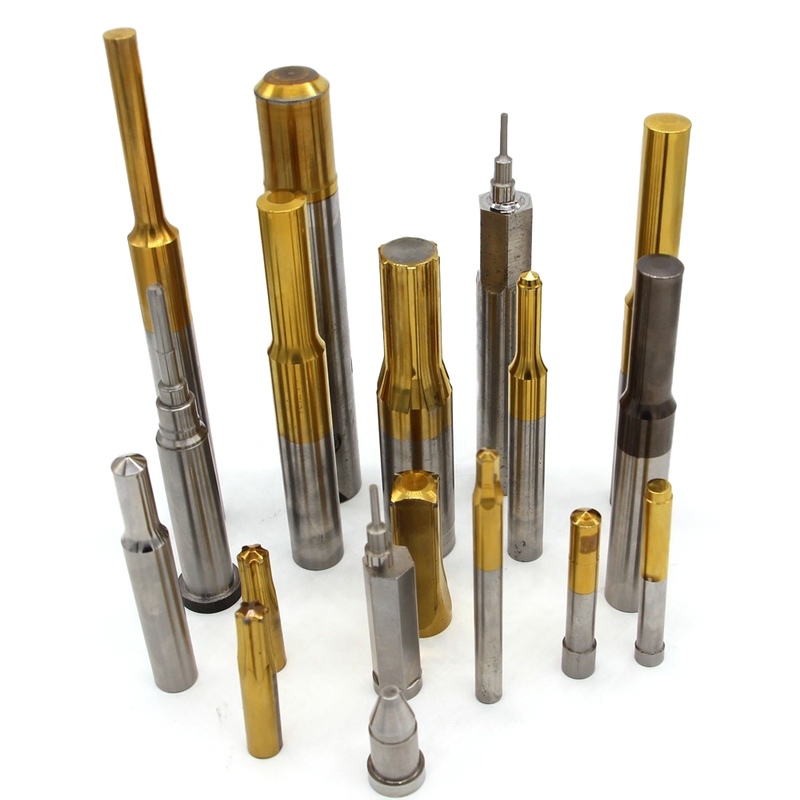

Name: Tungsten Carbide Punch Pin with TiN Coating for Long Mould Life and High Toughness in Industrial Field
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: disesuaikan
Price: 2 USD
Availability: InStock

Beranda > Produk > Tungsten Karbida Mati >

Tungsten Carbide Punch Pin with TiN Coating for Long Mould Life and High Toughness in Industrial Field

TiN Coating Punch Pin

Long Mould Life Heading Punch

High Toughness Tungsten Carbide Punch

Tempat asal:

Chongqing, Cina

Sertifikasi:

ISO

Nomor model:

disesuaikan

Hubungi Kami

Minta Kutipan

Tungsten Carbide Punch Pin with TiN Coating for Long Mould Life and High Toughness in Industrial Field

Detail Produk

Mode Pembentukan:

Cetakan Ekstrusi

Bahan produk:

Karbit

Ukuran:

Ukuran khusus

Kehidupan Cetakan:

250000-300000 tembakan

Format gambar:

2D/(PDF/CAD) 3D (IGES/Step)

Moq:

Toleransi profil:

+/- 0,006mm ~ +/- 0,008mm

Perawatan permukaan:

Pemolesan, perawatan pelapisan, pengobatan nitriding, pengukuran, dll

Kekerasan:

HRA60-68

Alat pengukur:

VM, proyektor profil, pengukur tekanan, penguji kekerasan, kaca pembesar

Mesin pemrosesan:

Kawat EDM, CNC Milling and Turning, Laser Cutting, Drilling, Grinding, Bending, Stamping, Welding

Perangkat Lunak Menggambar:

AutoCAD, Pro-Engineer, UG, Moldflow

Komposisi Kimia c:

0,85-1,06%

Komposisi Kimia Cr:

3.74-4.12%

Komposisi Kimia Mo:

4.73-9.29%

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

Produk terkait

Alat Pelubang Sekrup Industri Baja yang Dikeras Punch Ganti Cepat Presisi Tinggi CNC Machined

Dapatkan Harga Terbaik

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

Dapatkan Harga Terbaik

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

Dapatkan Harga Terbaik

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Dapatkan Harga Terbaik

Hubungi Kami

+8613983025528

hou@citool.com

86-023-60338218-60338218

Hubungi Sekarang

Deskripsi produk

Punch Pin TiN Coating Heading Punch - China Supplier Customized New Design

Our high-quality HSS Punch is manufactured with precision for superior performance in demanding industrial applications. The material selection focuses on high-speed steel to ensure excellent red hardness and wear resistance during high-speed punching operations.

Material Options

We offer multiple material grades to suit various application requirements:

Carbide (Premium grade)
M42 (H59)
M35 (H55)
M2 (H9)

Material Composition

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
H9(M2) Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
M42(SKH59) Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34

Surface Treatment

TILAN coating for enhanced durability

Product Specifications

Feature	Specification
Product Name	HSS Pin Punch
Material	M2/M42/M35/Carbide
Profile tolerance	+/-0.006MM~ +/-0.008MM
Surface treatment	Polishing, coating Treatment, Nitriding treatment
Hardness	HRA60-68
Measuring instruments	VMS, profile projector, pressure gauge, hardness tester
Usage	For making bolts or nuts
Design	Standard or custom according to requirements
Processing machinery	Wire EDM, CNC milling and turning, laser cutting, etc.
Drawing software	AUTOCAD, Pro-Engineer, UG, Moldflow
Application	Machinery equipment, heavy industries, medical, chemical
Quality control	100% inspection before shipping
Customization	OEM/ODM service available
