Name: First Punch Case Cold Heading Die Screw Punch Bushing SKD1 ,1.2379 Mold For Fastener
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 52.00 USD
Availability: InStock

Beranda > Produk > Pos Dingin Mati >

First Punch Case Cold Heading Die Screw Punch Bushing SKD1 ,1.2379 Mold For Fastener

hex segmented die

carbide heading dies

Place of Origin:

Chongqing, China

Nama merek:

Sertifikasi:

ISO9001:2015

Model Number:

Customized

Hubungi Kami

Minta Kutipan

First Punch Case Cold Heading Die Screw Punch Bushing SKD1 ,1.2379 Mold For Fastener

Detail Produk

Material:

D2(SKD11/1.2379)

Application:

Making screws

Service:

OEM ODM

Surface:

Polishing

Use:

with first punch die

product name:

First Punch bushing

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

USD+Negotioned+Pieces

Packaging Details

Cartons, wooden boxes, pallets, packaged according to weight and customer requirements

Delivery Time

12-15 working days

Payment Terms

T/T, Western Union, Credit Card

Supply Ability

300pcs 15days

Produk terkait

High-Speed Steel (HSS) Cold Heading Die - High Strength Impact Resistant Long Lifespan for Automotive Parts Manufacturing

Dapatkan Harga Terbaik

High-Restraint Die Cold Heading Die China Supplier Customized Good Quality

Dapatkan Harga Terbaik

Customized Good Quality Drawing Die Cold Heading Die Tungsten Carbide

Dapatkan Harga Terbaik

China Factory Customized Good Quality Drawing Die Cold Heading Die Tungsten Carbide

Dapatkan Harga Terbaik

Hubungi Kami

86-23-60338218-60338218

hou@citool.com

86-023-60338218-60338218

Hubungi Sekarang

Deskripsi produk

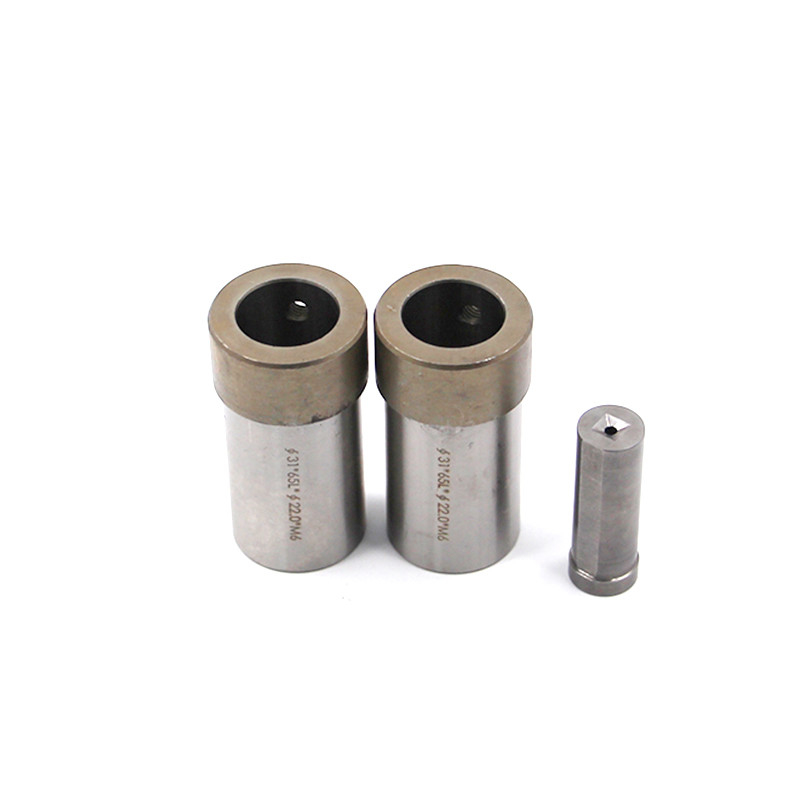

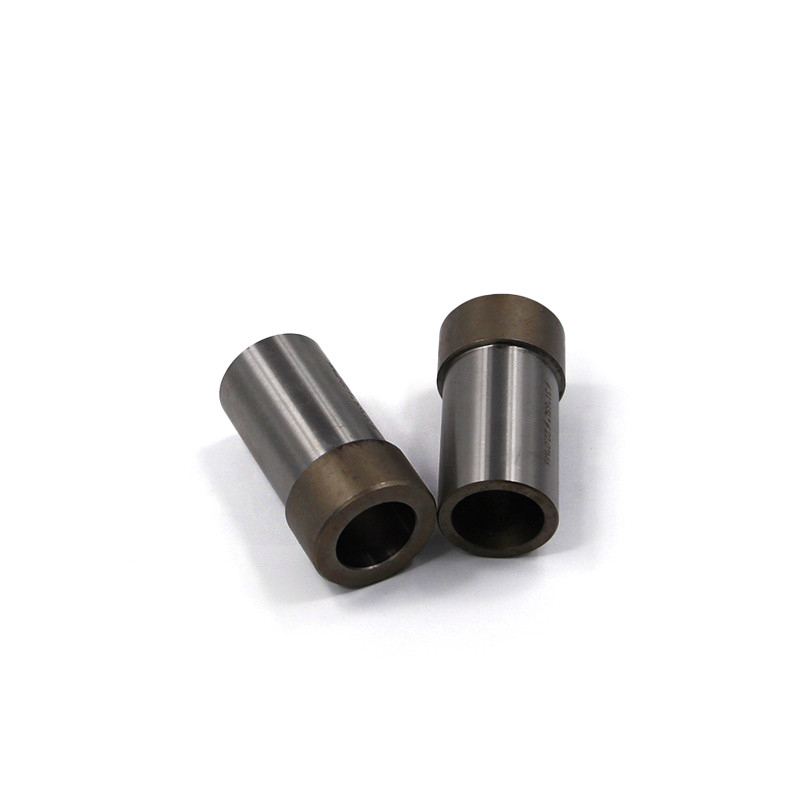

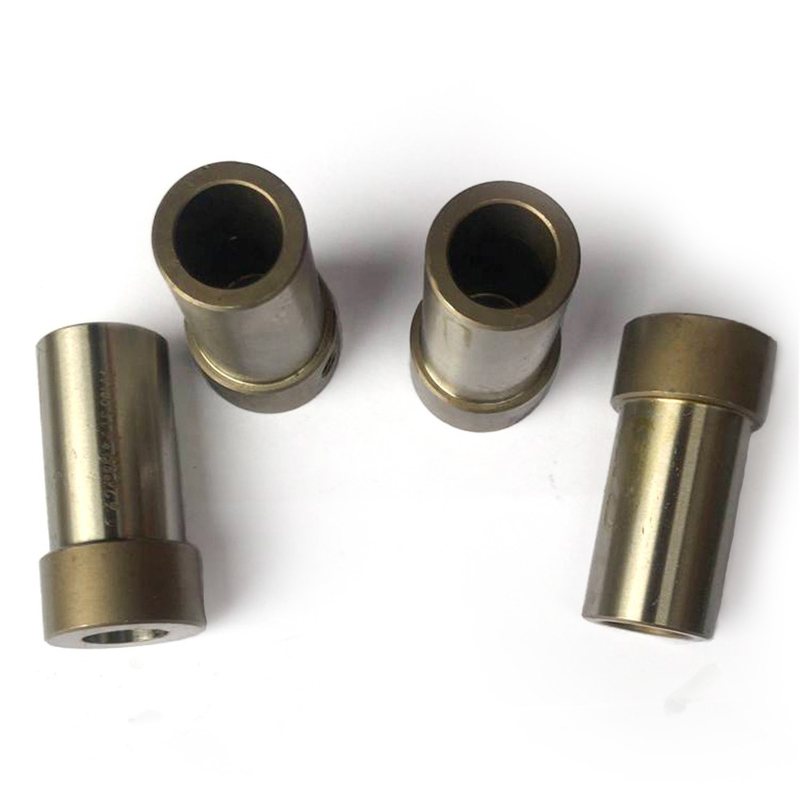

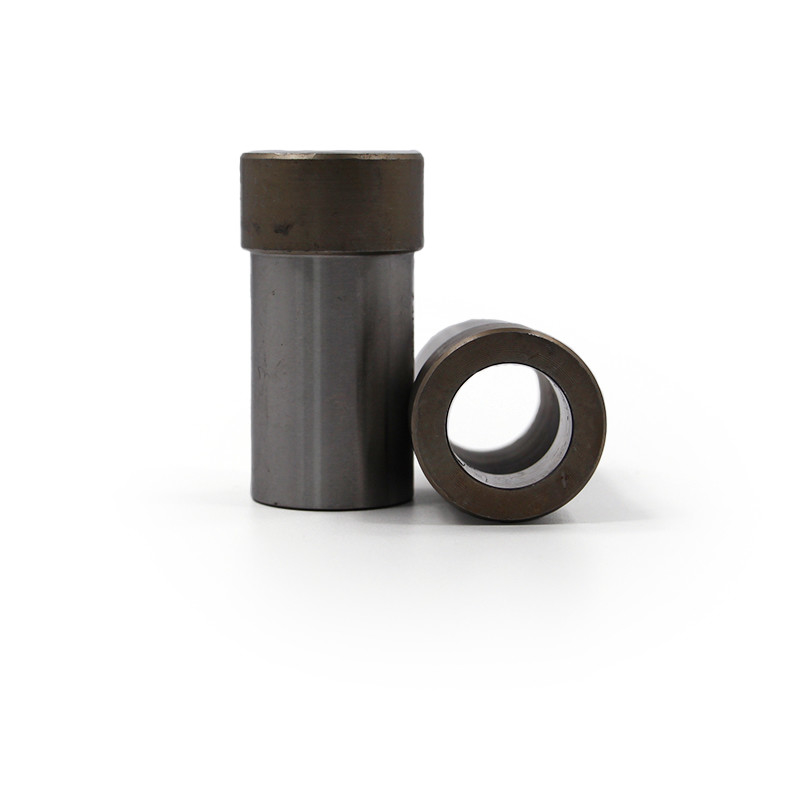

First Punch Case Cold Heading Die Screw Punch Bushing SKD1 ,1.2379 Mold For Fastener

For 1D2B cold heading machine, the main die sets include: main die, first punch (fixed first punch and all tungsten one punch), second punches (punch case and the second punch), first punch case, punch pin, shear die & cutter knife. The die sets for the 2D4B cold heading machine generally includes: first die, second die, first punch, third punch, fourth punch, cutter knife, shear die and punch pin. In fact, a complete set of dies also includes some accessories, such as springs, spring seats, gaskets and so on.

All our Segmented Hex Dies are made by high-precision fixture with imported tungsten steel and advanced hot pressing process. It has improved the defect of swelling on the side and emerging the six strips under normal use.

Hole size: H6~H50 (mm)

Material: Tungsten carbide and Die Steel

We make Segmented Hex carbide Dies for Carbide Cold Heading Dies used in fastener industry.

We have many satisfied customers in the field of fasteners specially High-strength Fastener . Apart from rivets, we make segmented carbide dies for screws as well.

Special care is taken to determine the grade of Carbide which is to be used in these carbide dies.

All dies are made using cold die steel case.

Segmented Hex Carbide Die Carbide which is to be used in these carbide dies.

The Hex on Hex design uses trapezoid shaped sections, which helps disperse the impact shocks more effectively aiding increased mold life.
